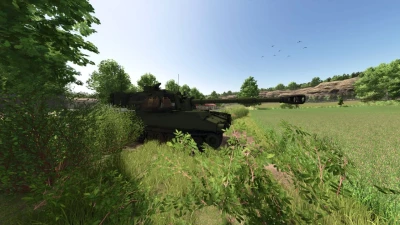

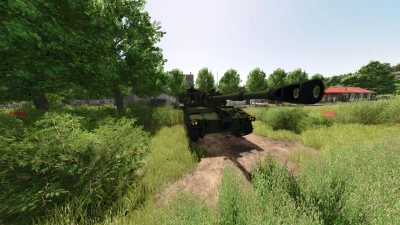

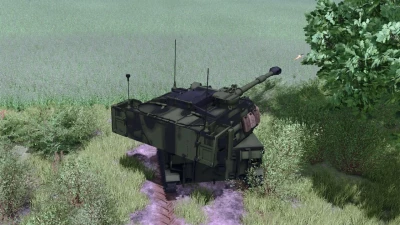

M109A6 Paladin Self-Propelled Howitzer v1.0.0.0

M109A6 Paladin Self-Propelled Howitzer
The M109A6 Paladin is a American-made 155 mm self-propelled howitzer. It represents a major upgrade to the M109 family, designed to provide fast, highly accurate, and heavy indirect fire support to armored and mechanized infantry units.

1. Key Technical Specifications
Origin: United States

Vehicle Type: Armored self-propelled tracked howitzer

Main Armament: 155 mm / L39 cannon (M284 model)

Firing Range:

Standard High-Explosive (M107): ~24 km (15 miles)

Rocket-Assisted Projectile (RAP - M549A1): ~30 km (18.6 miles)

GPS-Guided Precision Munition (M982 Excalibur): Up to 40 km (25 miles)

Rate of Fire:

Maximum: 4 rounds per minute for the first 3 minutes

Sustained: 1 round every 2 minutes

Secondary Armament: One .50 caliber (12.7 mm) M2HB heavy machine gun for close defense

Onboard Ammunition Capacity: 39 rounds of 155 mm projectiles with corresponding propellant charges and fuzes

Crew: 4 (Commander, Driver, Gunner, and Loader) — reduced from 6 in earlier M109 variants

2. Mobility & Protection
Engine: Detroit Diesel 8V71T (440 hp)

Top Speed: ~56 km/h (35 mph) on roads

Operational Range: ~300 km (186 miles)

Armor & Hull: All-welded aluminum armor supplemented with internal Kevlar spall liners to shield the crew from small arms fire, artillery shell fragments, and spalling.

3. Key Technological Features & Systems
The main leap forward with the M109A6 Paladin over earlier variants (M109A1 through A5) is its onboard electronic suite and automated systems:

"Shoot-and-Scoot" Capability:

Equipped with an Inertial Navigation System (INS) combined with GPS and an Automatic Fire Control System (AFCS).

It does not need to stop at a pre-surveyed battery position to lay its gun. The Paladin can receive target coordinates while moving, come to a halt, automatically orient its barrel, fire, and move out in under 60 seconds. This dramatically reduces vulnerability to enemy counter-battery fire.

Secure Digital Communications:

Features integrated digital tactical radio systems for real-time target data transmission between forward observers, fire direction centers, and the vehicle.

4. Military Significance & Operational Role
Armored Artillery Backbone: Served as the primary heavy field artillery piece for the U.S. Army's Armored Brigade Combat Teams (ABCT) starting in the 1990s.

Combat Deployments: Saw extensive action in Operation Iraqi Freedom, Operation Enduring Freedom (Afghanistan), and various international deployments. It has also been supplied to allied nations (including Ukraine).

Modernization: While still active globally, the U.S. military has been transitioning to the M109A7, which upgrades the chassis and powertrain with components derived from the Bradley Fighting Vehicle to improve mobility, electrical capacity, and maintainability.
